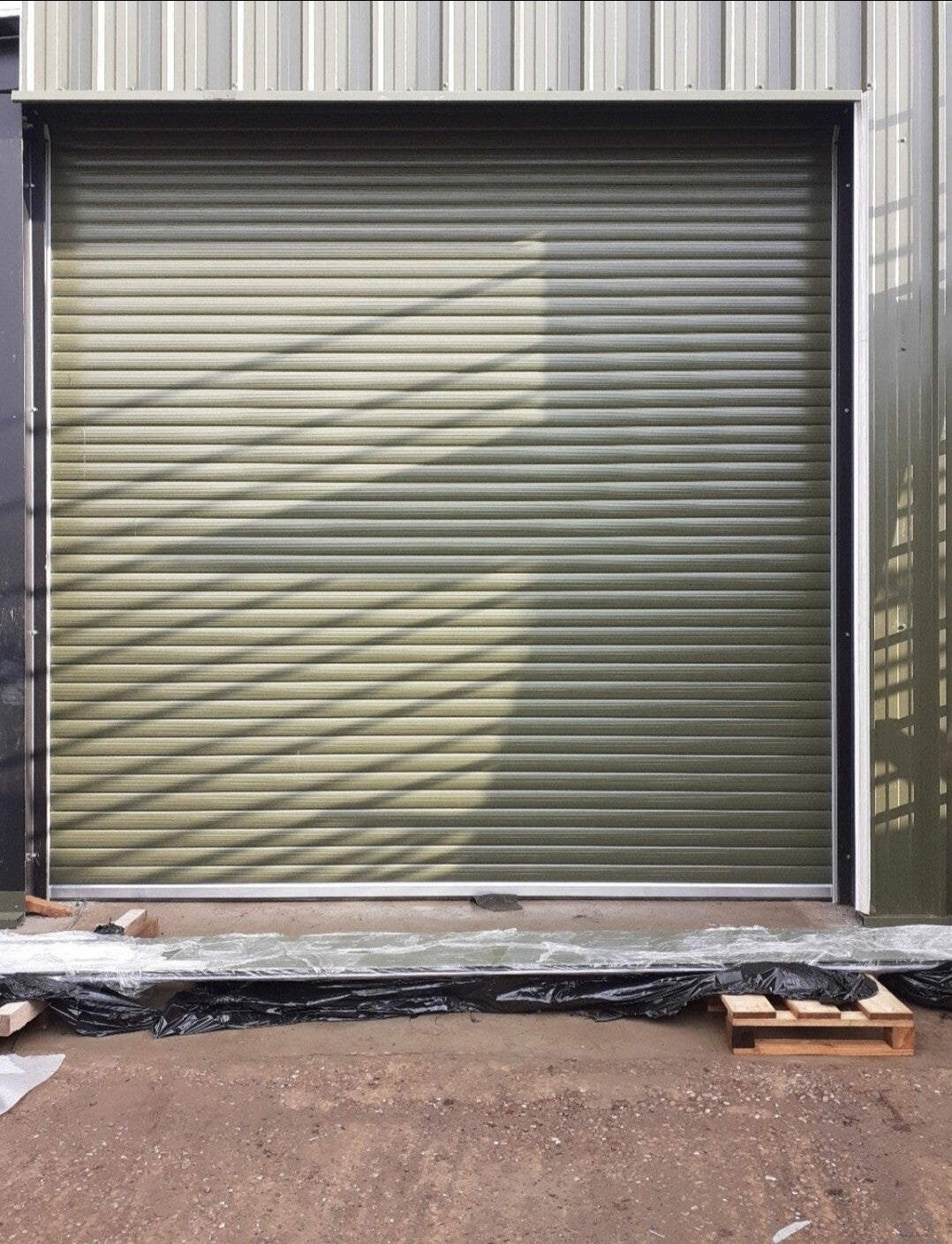

240v tubular motor RS95 INSULATED roller shutter doors

240v tubular motor industrial RS95 INSULATED roller shutter doors

components:

galvanised 95mm foam injected insulated lath

aluminium mill finish bottom rail

standard rubber weatherseal

galvanised 85mm insulated guide runners c/w side guide brush seals

150mm top soffit brush seals

tube motor barrel assembly to a minimum of 1:400 deflection ratio

240v tubular motor c/w manual overide via crank handle

safety brake as standard to meet antifall back legislation

keyswitch operation

galvanised finish

no canopy included

u-value of 3.2 w/m2k

windclass level 5 rated

general build time is 15-20 working days from approval of drawing

*FREE SHIPPING TO A RADIUS OF 20 MILES FROM DUDLEY ONLY*

collection is from dudley area of west midlands

*delivery/installation available at extra cost

*plastisol colours available at extra cost of £28 per square metre*

*canopy available at extra cost

*vision panels available at extra cost

*please note 240v tubular motors are designed for light usage only to a maximum of 6 operations per day*

upon ordering a door please send with your order the following information so a drawing for approval can be raised and sent , the lead time will begin from reciept of signed approved drawing back to us

1. whats the clear opening width?

2. whats the clear opening height?

3. whats the door face fixing to? steel , brick or timber?

4. what side do you require the motor viewed internally?

*PLEASE NOTE WE CANNOT DELIVER TO IRELAND - MAINLAND UK ONLY*
